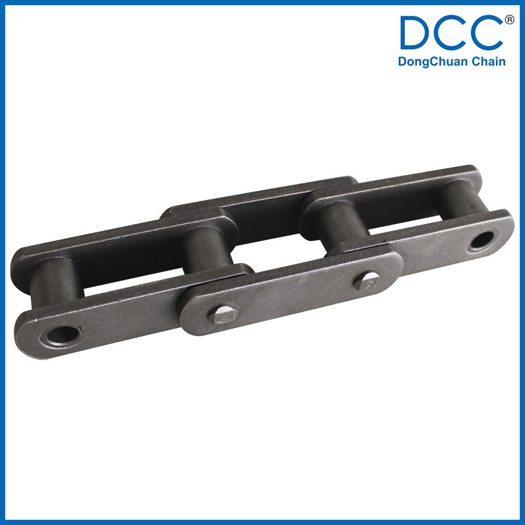

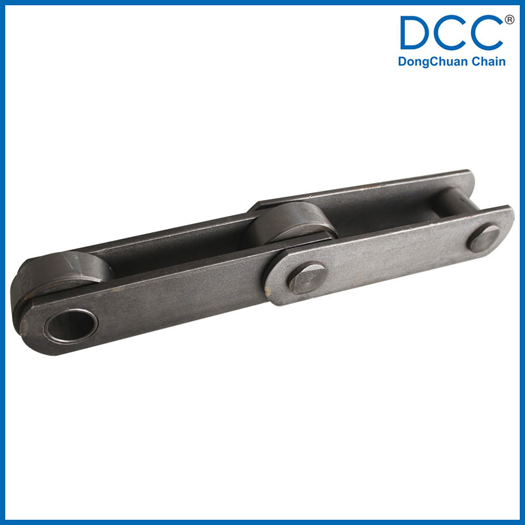

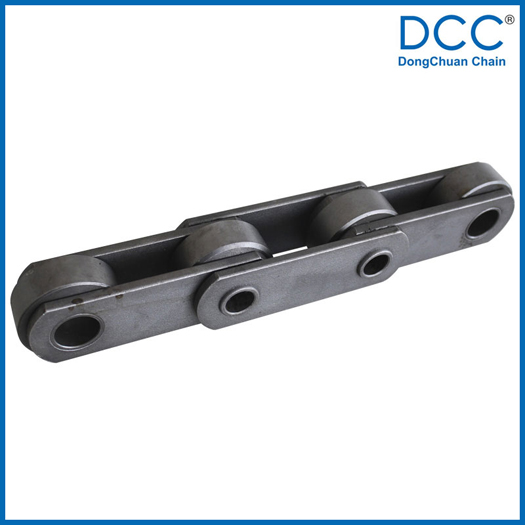

鏈條銷軸為空心狀，可以在兩排鏈條間穿入銷軸安裝平板，用于傳輸物料，鏈條需耐腐蝕，并要有較高的耐磨性。鏈條的材質(zhì)為不銹鋼或中碳合金鋼。
空心銷軸型棕櫚油鏈適用領域：制糖業(yè)，和煉油業(yè)。
|

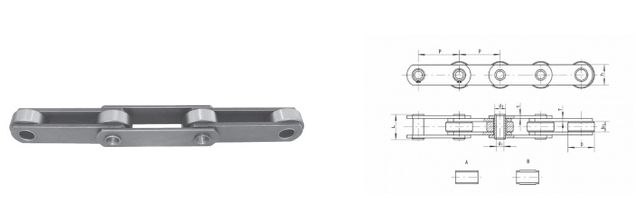

| Chain No. | Pitch P (mm) | Inner width of inner link b1 (min) (mm) | Outer diameter of roller (bushing) D (max.) (mm) | Pin | Sidebar | Min. tensile strength Q (KN) | |||
| L (mm) | d1 (mm) | d2 (mm) | h (mm) | t/T (mm) | |||||
| 76.2 | 15 | 31.8 | 38 | 10.1 | 13.97 | 25.5 | 3.8 | 27 | |
| 101.6 | 15 | 31.8 | 38 | 10.1 | 13.97 | 25.5 | 3.8 | 27 | |
| 152.4 | 15 | 31.8 | 38 | 10.1 | 13.97 | 25.5 | 3.8 | 27 | |
| 101.6 | 19 | 47.6 | 46.2 | 13.2 | 19.05 | 38.1 | 3.8/5.1 | 54 | |
| 152.4 | 19 | 47.6 | 46.2 | 13.2 | 19.05 | 38.1 | 3.8/5.1 | 54 | |
| 101.6 | 25.4 | 66.7 | 63 | 19.56 | 26.92 | 50.8 | 6.5/7.8 | 124.5 | |
| 152.4 | 25.4 | 66.7 | 63 | 19.56 | 26.92 | 50.8 | 6.5/7.8 | 124.5 | |
| 152.4 | 38.1 | 88.9 | 83.3 | 22.9 | 31.8 | 61 | 7.6/8.9 | 160 | |
| 203.2 | 38.1 | 88.9 | 84.2 | 22.9 | 30 | 61 | 8 | 280 | |
